### Mesh over a pill

150

views

0

Hello,

I would like to generate a mesh in "slightly complex" domains, for example a 3d pill-shape domain. Here I copy a simple code:

-----------------------------------------------------------------

-----------------------------------------------------------------

In this way, the code takes ages to work and actually I feel it gets stuck. If instead I use the code:

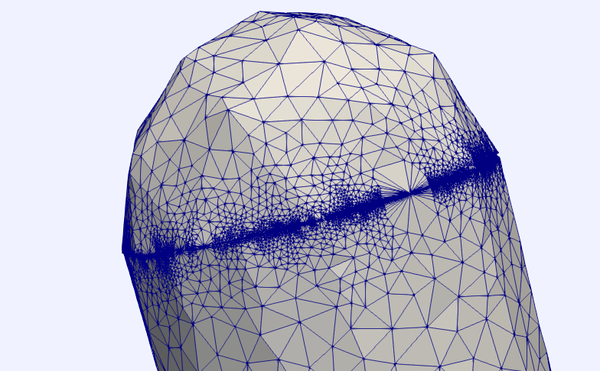

In which I am simply defining the values for the precision in Sphere and Cylinder, this generates a very heterogeneous mesh, with very tiny elements around the boundary between the half spheres and the cylinder (see picture). I believe this is generated by the fact that the sides of the 2 polyhedra (half spheres and cylinder) are not matching, so the question is actually how can I match these through the polyhedral approximation, getting a more uniform mesh.

I would be grateful if you could help,

Thanks in advance,

Davide

I would like to generate a mesh in "slightly complex" domains, for example a 3d pill-shape domain. Here I copy a simple code:

-----------------------------------------------------------------

**from fenics import *****from dolfin import *****import mshr as mshr****Omega = mshr.Sphere(Point(0,0,0), 5) + mshr.Cylinder(Point(0,0,0), Point(10,0,0), 5, 5) + mshr.Sphere(Point(10,0,0), 5)****domain_mesh = mshr.generate_mesh(Omega,20)**-----------------------------------------------------------------

In this way, the code takes ages to work and actually I feel it gets stuck. If instead I use the code:

**-----------------------------------------------------------------****from fenics import *****from dolfin import *****import mshr as mshr****Omega = mshr.Sphere(Point(0,0,0), 5, 3) + mshr.Cylinder(Point(0,0,0), Point(10,0,0), 5, 5, 15) + mshr.Sphere(Point(10,0,0), 5, 3)****domain_mesh = mshr.generate_mesh(Omega,20)****-----------------------------------------------------------------**In which I am simply defining the values for the precision in Sphere and Cylinder, this generates a very heterogeneous mesh, with very tiny elements around the boundary between the half spheres and the cylinder (see picture). I believe this is generated by the fact that the sides of the 2 polyhedra (half spheres and cylinder) are not matching, so the question is actually how can I match these through the polyhedral approximation, getting a more uniform mesh.

I would be grateful if you could help,

Thanks in advance,

Davide

Community: FEniCS Project

1

Try gmsh for greater control http://gmsh.info/.

written
3 months ago by
Nate

1

Or Salome https://www.salome-platform.org/

written
3 months ago by
klunkean

Thank you very much, I will try both!

written
3 months ago by
Davide
