### How to solve PDE in subdomain with mesh import from Gmsh?

332

views

1

Hello all,

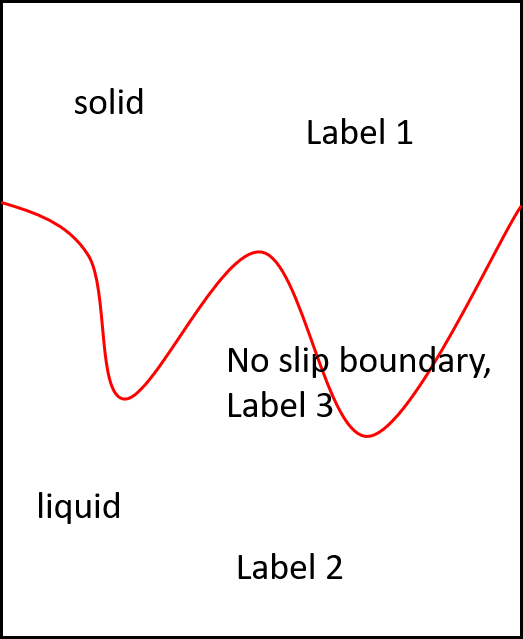

I have a 2 phase problem to solve, it is like the figure below:

And its boundary is labelled as 3.

I generate my mesh from Gmsh.

The code is like:

The code like below does not work neither, there is no error report but the result makes no sense:

I have a 2 phase problem to solve, it is like the figure below:

Now I want to solve a navier-stoke equation in the liquid part, which is labelled as 2.

And its boundary is labelled as 3.

I generate my mesh from Gmsh.

The code is like:

```
mesh = Mesh("filename.xml")
cd = MeshFunction('size_t', mesh, "filename_physical_region.xml")
cdl = MeshFunction('size_t', mesh, "filename_facet_region.xml")
subdomain = CellFunction("size_t", mesh)
subdomain.set_all(0)
subdomain.array()[cd.array()==1] = 1
subdomain.array()[cd.array()==2] = 2
boundary = FacetFunction("size_t", mesh)
boundary.set_all(0)
boundary.array()[cdl.array()==3] = 3
# Now I guess in order to solve the navier stokes equation only in subdomain 2,
# I need to create a submesh and a FunctionSpace in the subdomain like:
submesh = SubMesh(mesh, subdomain, 2)
W = FunctionSpace(submesh, 'P', 1)
# but how do I set the Dirichlet boundary condition on the curve 3?
# I tried:
bcw = Dirichlet(W, Constant(0.0), cdl, 3)
# of course I got the error's reason: User MeshFunction and FunctionSpace meshes are different
```

Thank you!!!

Community: FEniCS Project

written
5 months ago by
SICHENG SUN

### 1 Answer

2

Hi SICHENG SUN,

if I understood correctly and you succeeded in creating the submesh for subdomain 2, a straightforward solution could be:

if I understood correctly and you succeeded in creating the submesh for subdomain 2, a straightforward solution could be:

```
def nolisp(x, on_boundary):
if on_boundary:
if near(x[0], Right, tol) or near(x[0], Left, tol) or near(x[1], Bottom, tol):
return False
else:
return True
else:
return False
bcw = DirichletBC(V, Constant(0.0), nolisp)
```

Thank you!

Well, my no slip boundary is only on the red line, which is labelled as 3.

Other boundaries are just Neuman boundary with flux = 0.(So we can leave them alone.)

----------------------------

But I actually have solved it in another way.

I solve the velocity in the whole domain rather than the sub domain. And set the velocity in the solid equal to 0.

Well, my no slip boundary is only on the red line, which is labelled as 3.

Other boundaries are just Neuman boundary with flux = 0.(So we can leave them alone.)

----------------------------

But I actually have solved it in another way.

I solve the velocity in the whole domain rather than the sub domain. And set the velocity in the solid equal to 0.

written
5 months ago by
SICHENG SUN

2

The noslip function returns False for the bottom, left and right boundaries.

It should (probably) return True only for the red boundary.

It should (probably) return True only for the red boundary.

written
5 months ago by
Igor Baratta

Oh, I see it now. That's such a clever way to define to boundary. I have never thought like this.

Thx a lot!

Although I have already solved this problem, you provided me another different and intelligent method. I am really appreciate it.

Thx a lot!

Although I have already solved this problem, you provided me another different and intelligent method. I am really appreciate it.

written
5 months ago by
SICHENG SUN
