See a field only on a complex boundary


357
views
0
7 months ago by
Hallo everybody,
thanks in advance for the help.

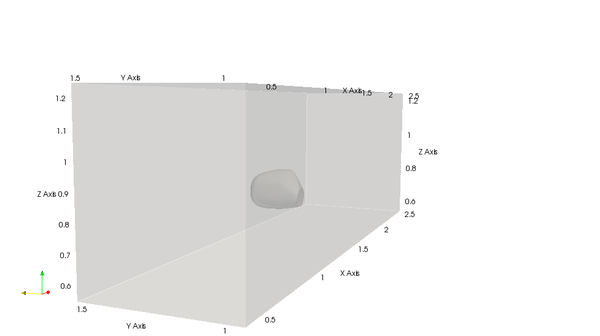

I want to simulate a flow around a complex 3D geometry, in particular a car mirror. I solved a the Navier-Stokes equation on a complex 3D geometry:

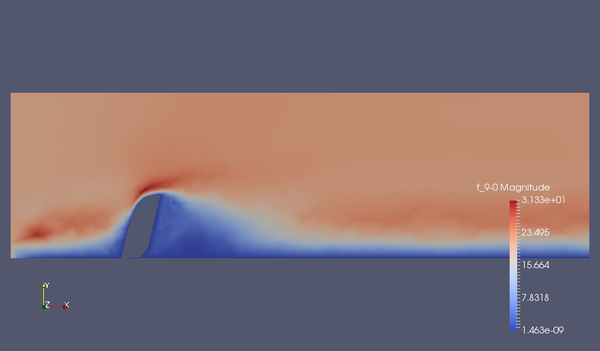

and I get the solution:



In my Fenics code I defined the boundary condition as follow:

   #set boundaries
   class Inlet(SubDomain):
   def inside(self, x, on_boundary):
   return on_boundary and abs(x[0]-x_min) < DOLFIN_EPS

   class Outlet(SubDomain):
   def inside(self, x, on_boundary):
   return on_boundary and abs(x[0] - x_max) < DOLFIN_EPS

   class Walls(SubDomain):
   def inside(self, x, on_boundary):
   return on_boundary and \
   (abs(x[1] - y_max) < DOLFIN_EPS or abs(x[2] - z_min) < DOLFIN_EPS or abs(x[2] - z_max) < DOLFIN_EPS)

   class AllBoundary(SubDomain):
   def inside(self, x, on_boundary):
   return on_boundary
   boundaries = FacetFunction("size_t", mesh)
   boundaries.set_all(0)
   circle_ID = 4 # this will mark all the boundary, but it will be overwritten later
   circle = AllBoundary()
   circle.mark(boundaries, circle_ID)
   walls_ID = 1
   walls = Walls()
   walls.mark(boundaries, walls_ID)
   outlet_ID = 2
   outlet = Outlet()
  outlet.mark(boundaries, outlet_ID)
  inlet_ID = 3
  inlet = Inlet()
  inlet.mark(boundaries, inlet_ID)


Now I want to see into paraview the pressure distribution only on the object (the mirror). The paraview commands don't seem to allow this operation. Is there a way to make this kind of plot?

Thank you very much for the help.

M Pesarin



Community: FEniCS Project
Seems like a question for the Paraview forum...
written 7 months ago by pf4d

2 Answers


3
7 months ago by
It is just an idea but maybe you can try to extract the submesh corresponding to the mirror and then interpolate onto it. Inspired by the answers in https://fenicsproject.org/qa/1760/output-a-surface-of-a-function-defined-over-a-3d-mesh, the submesh extraction in a simple example might read
from fenics import *

mesh = UnitCubeMesh(10, 10, 10)

mesh_markers = FacetFunction("size_t", mesh, 0)
bottom = CompiledSubDomain('on_boundary && near(x[2], 0.0)')
bottom.mark(mesh_markers, 4)

bmesh   = BoundaryMesh(mesh, 'exterior')
cellmap = bmesh.entity_map(2)
bmesh_markers = CellFunction("size_t", bmesh, 0)

for c in cells(bmesh):
  if mesh_markers[cellmap[c.index()]] == 4:
    bmesh_markers[c] = 1

smesh = SubMesh(bmesh, bmesh_markers, 1)
plot(smesh, interactive=True)​
2
Continuing from Adam's answer :

If you have the degrees of freedom marked on the mirror, you can extract the boundary mesh using "fenics::BoundaryMesh()".  With this in hand, create a P1 FunctionSpace defined over this mesh, then use "fenics::LagrangeInterpolator()" to interpolate the 3D data onto the 2D mesh.  Then just save the 2D Function:


from fenics import *

mesh = UnitCubeMesh(20,20,20)
Q = FunctionSpace(mesh, 'CG', 1)

code = 'pow(x[0], 2) + pow(x[1], 2) + pow(x[2], 2)'
u_from = interpolate(Expression(code, degree=1), Q)

bmesh = BoundaryMesh(mesh, 'exterior')
cellmap = bmesh.entity_map(2)
pb = CellFunction("size_t", bmesh, 0)
for c in cells(bmesh):
  if Facet(mesh, cellmap[c.index()]).normal().z() > 1e-3:
    pb[c] = 1
submesh = SubMesh(bmesh, pb, 1)

Q_bmsh = FunctionSpace(bmesh, 'CG', 1)
u_to   = Function(Q_bmsh)
lg     = LagrangeInterpolator()

lg.interpolate(u_to, u_from)

File('u_to.pvd') << u_to​
Here, just the top of the domain is extracted for example.  You can use your own FacetFunction or whatever else to define "bmsh".
written 7 months ago by pf4d
That's a good idea...
written 7 months ago by pf4d
0
7 months ago by
Thank you very much for the help.
We solved  successfully the problem.

M Pesarin
Hello Matteo ,
Did Adam's answer solve your problem? Cause i am facing the same issue... i am trying to extract the values of my solution on different subdomains in fenics. Unfortunately submesh is not working in parallel yet... and despite the fact that Adam's answer seems really helpful, it is not convenient when solving in parallel. Thank you all for your effort anyways.
written 6 months ago by Vlasis Mitsoulas
